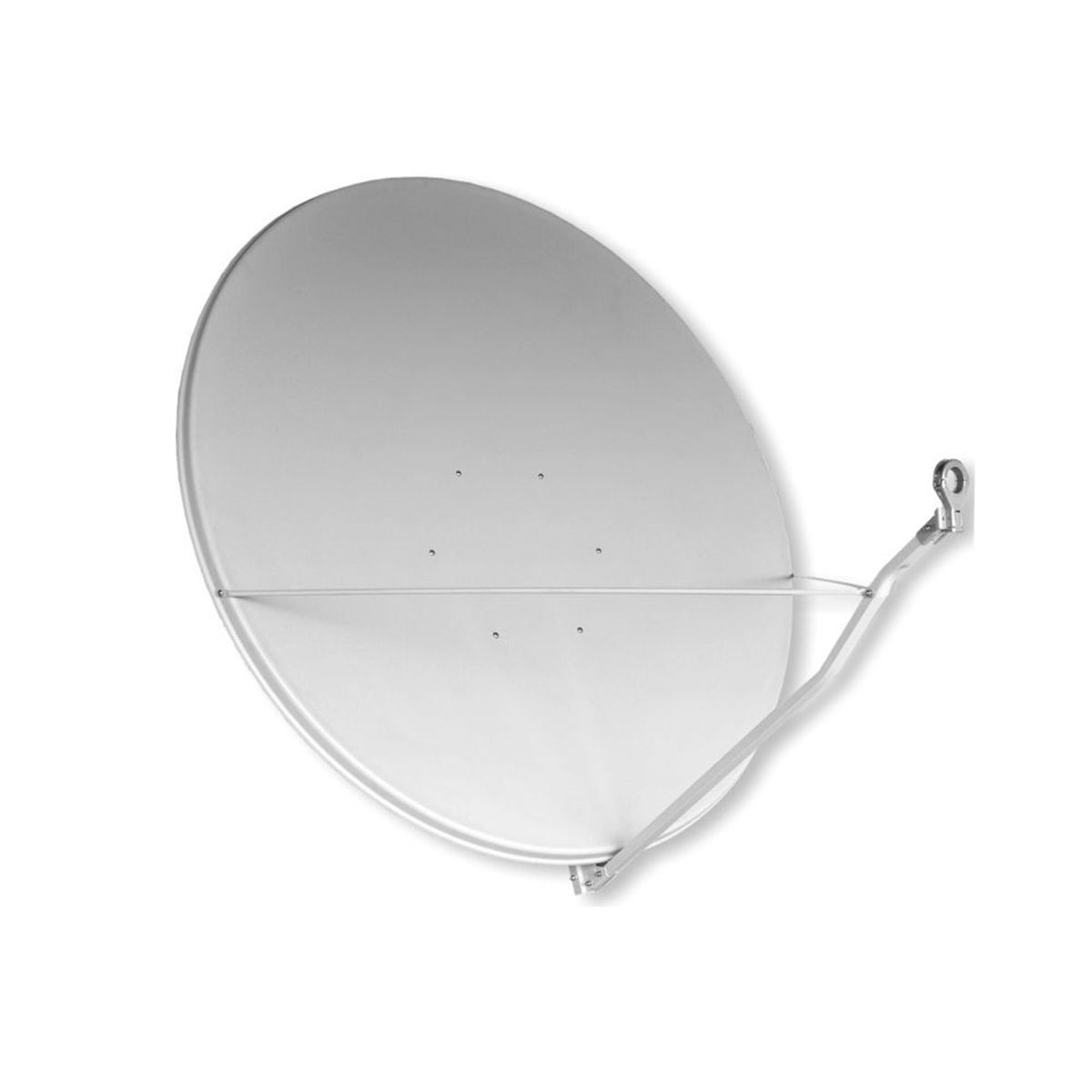

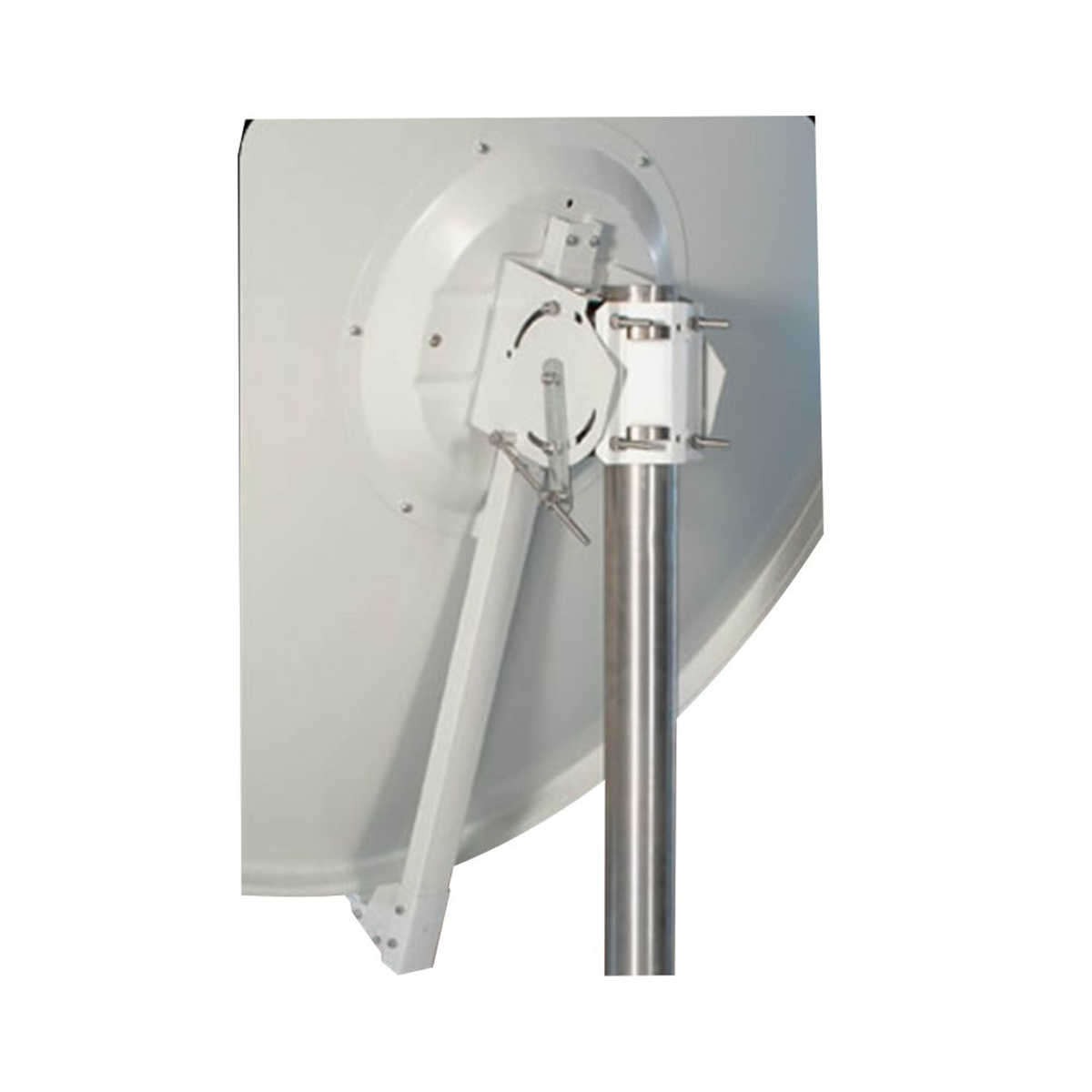

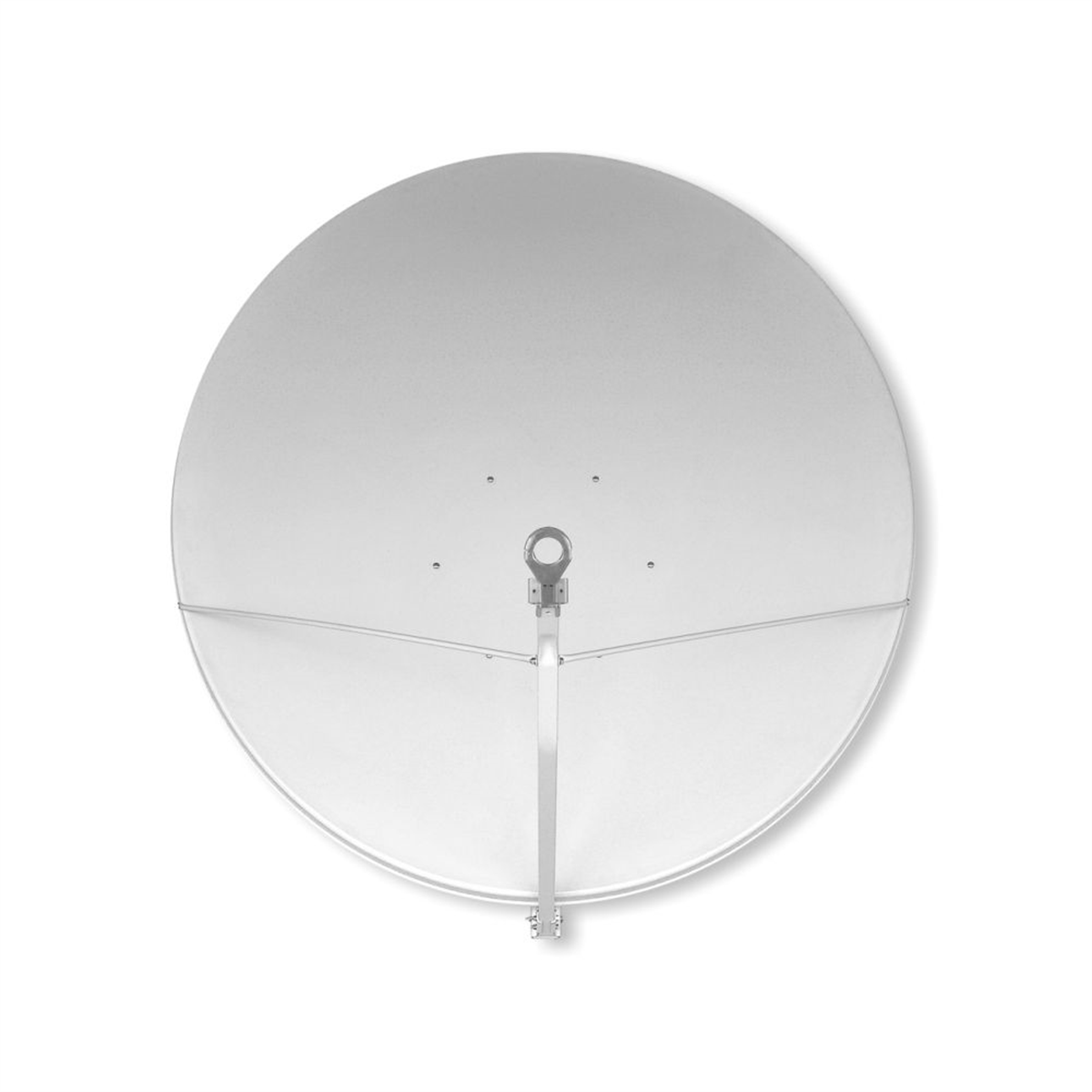

Gibertini 150 Cm Ofset Çanak Anten
Gibertini 150 Cm Ofset Çanak Anten
Gibertini 150 Cm Ofset Çanak Anten
Gibertini 150 Cm Ofset Çanak Anten

Gibertini 150 Cm Ofset Çanak Anten (EU-Gbr-003)

Marka : Gibertini
Fiyat : 27.042,75TL(KDV Dahil)
Stok Miktarı : 0
5.211,59TL `den başlayan taksitlerle

Gibertini 150 Cm Ofset Çanak Anten İtlaya'dan İthal Üründür.

 Gibertini 150 Cm Ofset Çanak Anten



Çanak Anten Kargo Dahil Fiyattır.

Haraket Mountu Yoktur. Opsiyonel Olarak Satın Almanız Gerekmektedir.



ÜRÜN ÖZELLİKLERİ:
OP 150 S
Frequency range (GHz) -> 10.00 - 13.00
Outside dimension (cm) -> 155.0 x 166.0
Reflecting dimension (cm)-> 150.0 x 161.0
Illumination efficiency * (%) -> 70
Gain * @ 10.70 GHz (dB) -> 43.00
Gain * @ 11.70 GHz (dB) -> 43.70
Gain * @ 12.75 GHz (dB) -> 44.50
Cross polarization * on axis (dBc) -> 28
First side lobe level * (dBc) -> -25
Noise temp. * @ 12GHz, 36° elevation (K) -> 31
F/D radio -> 0.66
3dB Beam width* @ 12GHz -> 1.07°
Offset pointing angle -> 21.3°
Feed illumination angle -> 70°
Feeder clamp (mm) -> 40/23
Elevation angle -> 20°-90°
Mast clamp (mm) -> 55-100
Alu reflector thickness (mm) -> 2.0
Steel reflector thickness (mm) -> Steel dish not available
Wind load @ 120 km/h (kg) [worst-case] -> 250
Net weight Alu dish+mount (kg) -> 28.8
Çanak Anten Ebatı
150 Cm
