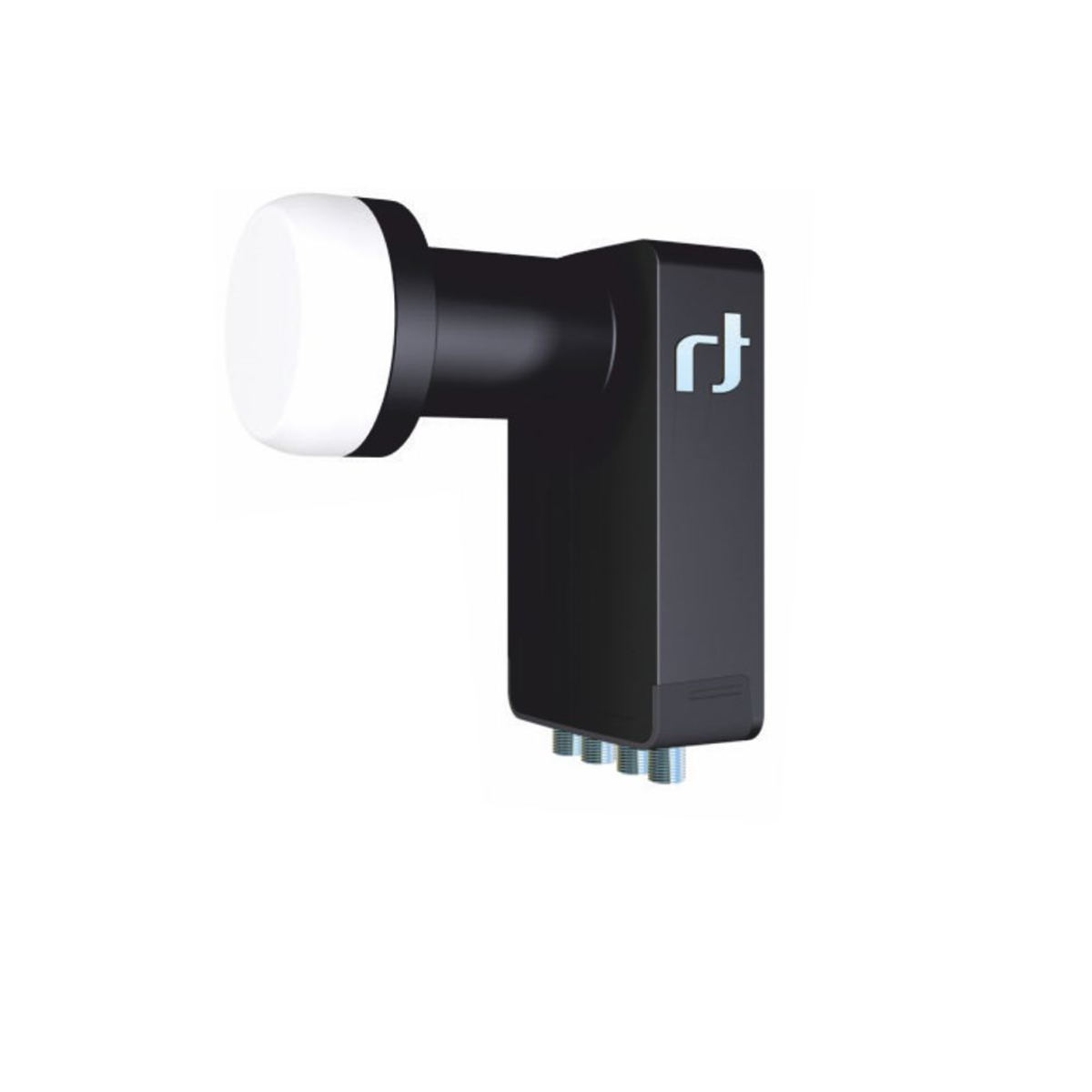

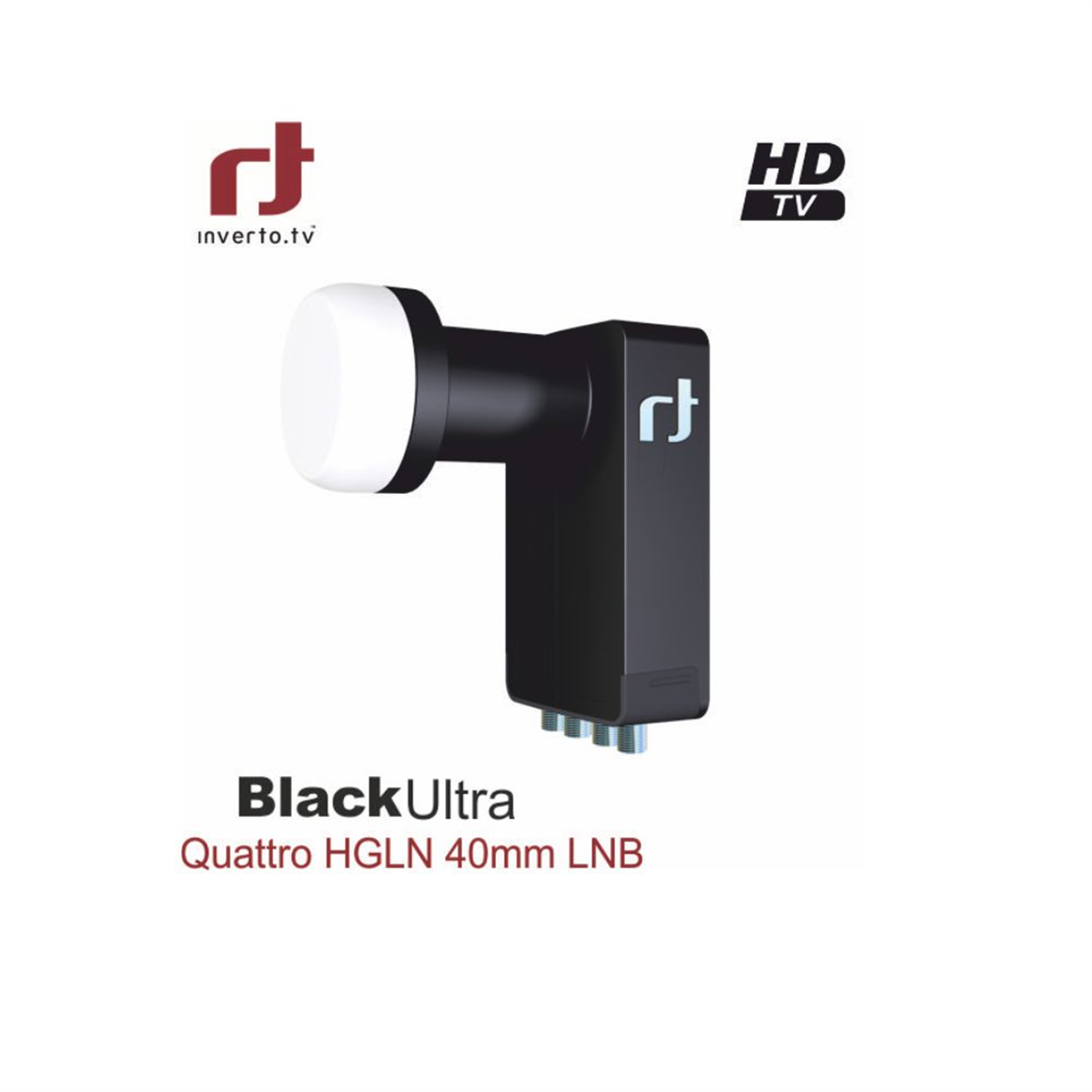

inverto Black Ultra Quattro (Merkezi Sistem) Lnb
inverto Black Ultra Quattro (Merkezi Sistem) Lnb
inverto Black Ultra Quattro (Merkezi Sistem) Lnb

inverto Black Ultra Quattro (Merkezi Sistem) Lnb (EU-İnv-006)

Marka : inverto
Fiyat : 888,68TL(KDV Dahil)
Stok Miktarı : 0
Barkod : 5453001045719
160,92TL 'den başlayan taksitlerle

Yüksek Kaliteli Sinyal seviyesine sahip dünyanın en kaliteli lnb modeli

Inverto Black Ultra Quattro (Merkezi Sistem) LNB

Yükek Kalitede Sinyal Seviyesi
Daha Yüksek Dönüşüm Kazancı
DVB S2(UHD-HDTV Uyumlu)

Low Band Input Frequency Range 10.7 ~ 11.7 GHz
Low Band Output Frequency Range 950 ~ 1950 MHz
Low Band LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7 ~ 12.75 GHz
High Band Output Frequency Range 1100 ~ 2150 MHz
High Band LO Frequency 10.6 GHz
Noise Figure 0.2 dB Typ. (0.7 dB Max.)
LO Initial Accuracy +/- 1.0 MHz Max.
LO Temperature Drift +/- 3.0 MHz Max.
Phase Noise (@ 10 kHz) - 90 dBc / Hz Max.
Conversion Gain 60 dB Min.
Gain Ripple (Over 26 MHz Bandwidth) +/- 0.75 dB
Gain Variation (Over Full Band) +/- 4 dB Max.
Image Rejection 40 dB Min.
1 dB Compression Point (@ Output) 0.0 dBm Min.
Cross Polarization Isolation 22 dB Min.
Output VSWR 2.0 : 1
In-Band Spurious - 60 dBm Max.
Current Consumption 200 mA Max. @ 11 ~ 20 V
Operating Temperature - 30 °C  ~  + 60 °C
Output Impedance 75 Ω
Output Connector F-Type (Female)
Weight 344 g
Lnb Tipi
Quattro (Santral)
