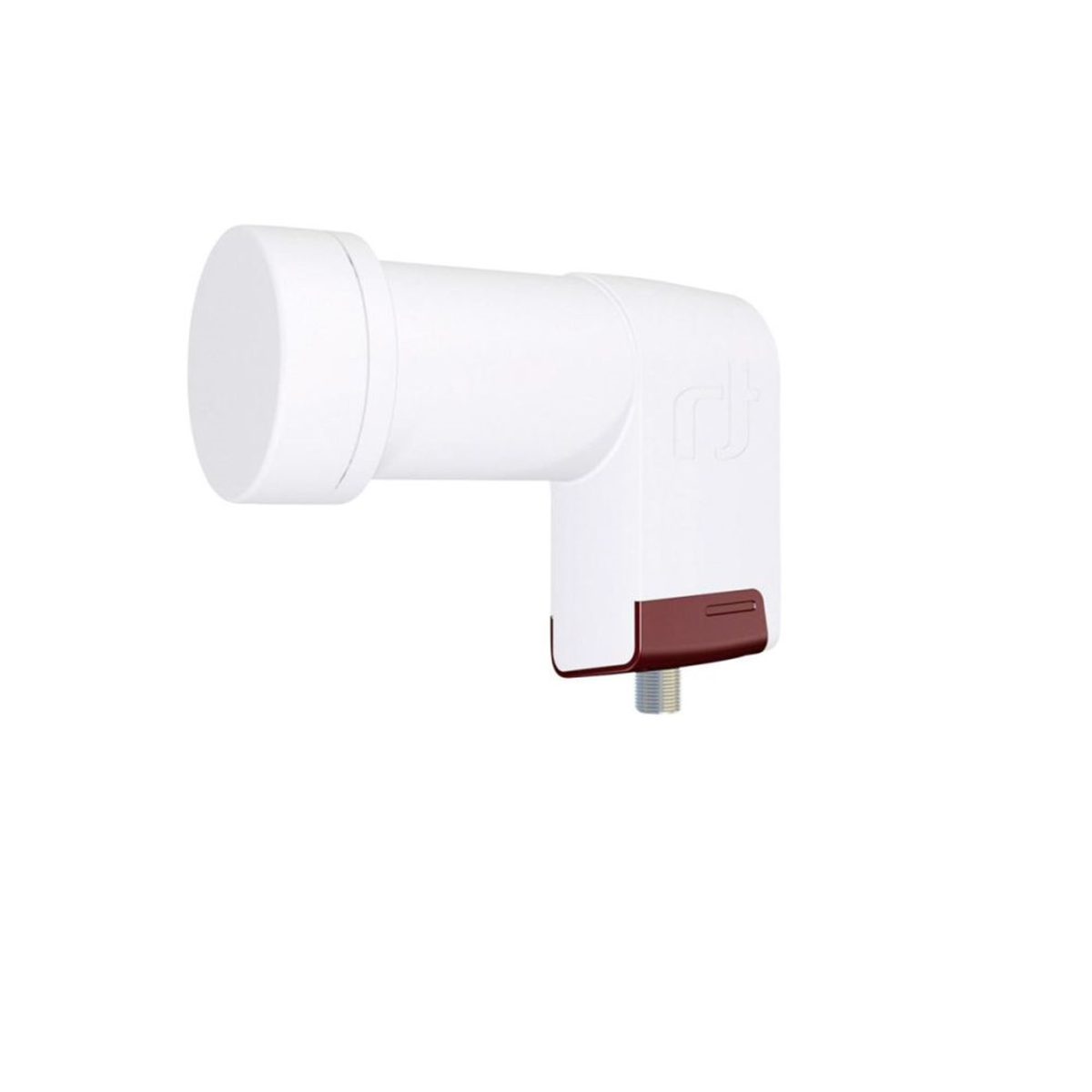

inverto Red Extend Single ( Tek Çıkışlı ) LNB

inverto Red Extend Single ( Tek Çıkışlı ) LNB (EU-İnv-020)

Marka : inverto
İndirim Oranı : %59 İndirim
Fiyat : 426,56TL(KDV Dahil)
İndirimli : 174,25TL(KDV Dahil)
Stok Miktarı : 0
Barkod : 5453002610862
31,55TL `den başlayan taksitlerle
Inverto Red Extend Single ( Tek Çıkışlı ) LNB

Ana Özellikler:
 • Çoklu Uydu Tesisatı için Uzun Boyunlu
• Düşük Gürültülü, DVB-S2 (HDTV) uyumlu
• Düşük güç tüketimi
• Yüksek Performans
• Yüksek Frekanslı Stabilite

Teknik Özellikler:

Low Band Input Frequency Range 10.7 ~ 11.7 GHz
Low Band Output Frequency Range 950 ~ 1950 MHz
Low Band LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7 ~ 12.75 GHz
High Band Output Frequency Range 1100 ~ 2150 MHz
High Band LO Frequency 10.6 GHz
Noise Figure 0.3 dB Typ. (0.7dB Max.)
LO Initial Accuracy +/- 1.0 MHz Max.
LO Temperature Drift +/- 3.0 MHz Max.
Phase Noise (@ 10 kHz) - 80 dBc / Hz Max.
Conversion Gain 55 dB Min.
Gain Ripple (Over 26 MHz Bandwidth) +/- 0.75 dB
Gain Variation (Over Full Band) +/- 4 dB Max.
Image Rejection 40 dB Min.
1 dB Compression Point (@ Output) 1 dBm Min.
Cross Polarization Isolation 22 dB Min.
Control Signal Ca (Vertical Polarization) 11.0 ~ 14.0 V
Control Signal Cb (Horizontal Polarization) 16.0 ~ 20.0 V
Control Signal Cc (Band Switching) 22 +/- 4 kHz
Output VSWR 2.5 : 1
In-Band Spurious - 60 dBm Max.
Current Consumption 120 mA Max. @ 11 ~ 20V
Operating Temperature - 30 °C ~  + 60 °C
Output Impedance 75 Ω
Output Connector F-Type (Female)
Weight 132 g
Lnb Tipi
Tek Çıkışlı (Single)
