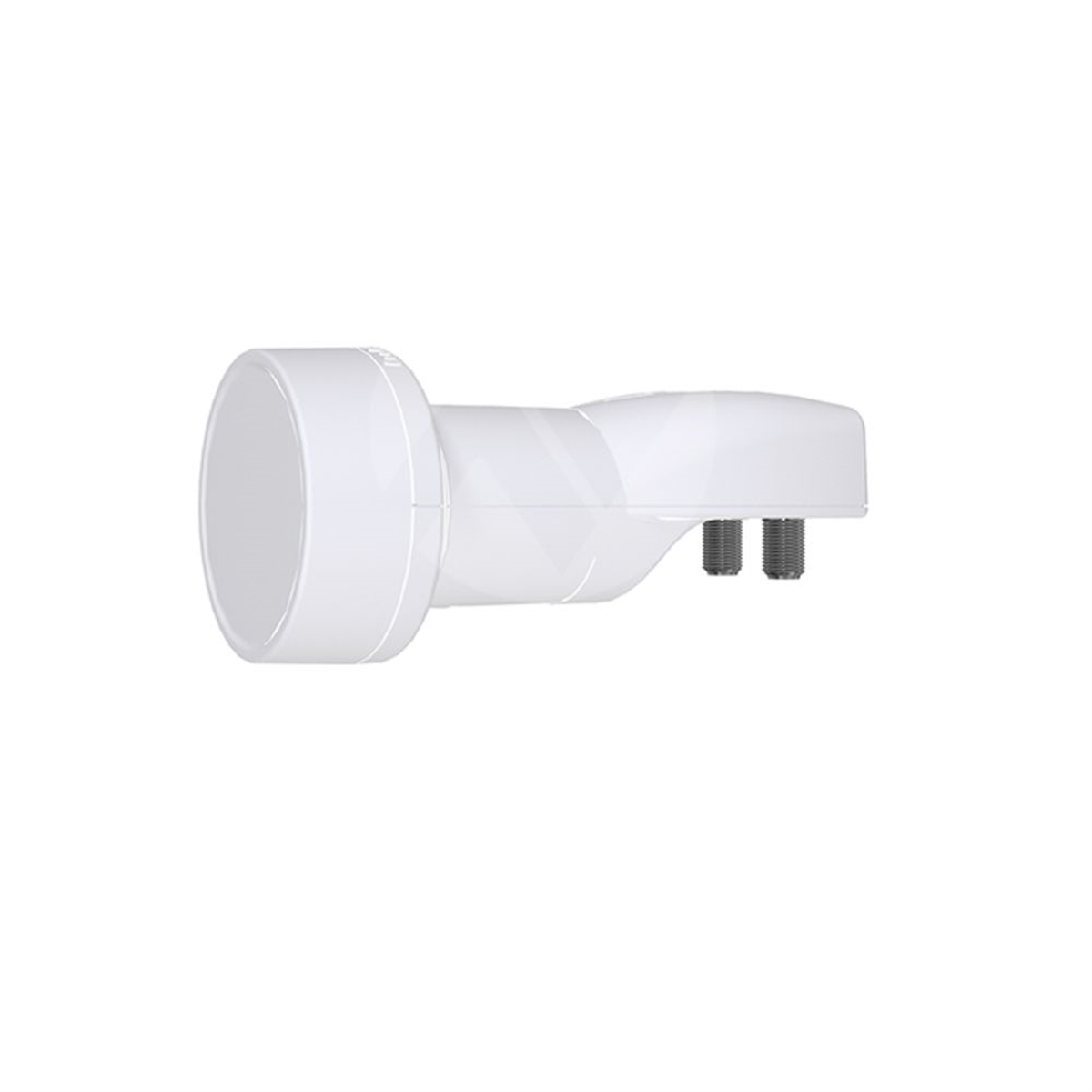

inverto Wideband Lnb
inverto Wideband Lnb

inverto Wideband Lnb (EU-İnv-029)

Marka : Novacom
Fiyat : 1.550,45TL(KDV Dahil)
Stok Miktarı : 0
Barkod : 5453002612804
298,80TL `den başlayan taksitlerle

Sky ingiliz uydusu için özel üretim lnb modeli

Inverto Wideband LNB 40mm LNB
Sky İngiliz Paketleri için özel tasarlanmış lnb modeli
Wide band I/P Frequency Range 10.70 ~ 12.75 GHz
O/P Frequency Range 300 ~ 2350 MHz
LO Frequency  @ 25°C 10.4 GHz ± 1 MHz
LO Temperature Drift (-30 ~ +60 °C) 10.4 GHz ± 2 MHz
LO Phase Noise -80dBc/Hz @ 10KHz
Noise Figure Max dB 1dB Max.
Conversion Gain 50dB ~ 60dB
Gain Variation 5dB (max.)
Gain Flatness (27 MHz) ±0.5dB/27MHz
Cross Polarization isolation 22dB (min.)
Image Rejection (8.05-10.1 GHz) 40dB (min.)
P1dB 0dBm (min.)
O/P VSWR 2.5:1 (max.)
O/P Spurious -60dBm (max.)
DC Power 10-10V max. mA 150mA Max.
Feed Horn Diameter 55mm
Neck Diameter 40mm
Lnb Tipi
Unicable
